Railway extension on time with steel

With an overall length of 400m, steelwork forms a total of nine spans.

The longest spans of the 1.5km-long Barking Riverside Viaduct, which is a vital component of a new railway extension, have been formed with structural steelwork. Martin Cooper reports.

FACT FILE
Barking Riverside Viaduct

Client: Transport for London (TfL)
Architect: Weston Williamson
Main contractor: MSVF (Morgan Sindall/VolkerFitzpatrick jv)
Structural engineer: Arcadis
Steelwork contractor: Severfield
Steel tonnage: 3,500t

Located on the site of a former coal-fired power station, Barking Riverside is said to be east London’s largest housing-led mixed-use development, with planning permission for up to 10,800 new homes, along with numerous healthcare, shopping, community and leisure facilities.

The former brownfield area is not best served by public transport and in order for the new development to realise its full potential a dedicated railway extension and station are being built.

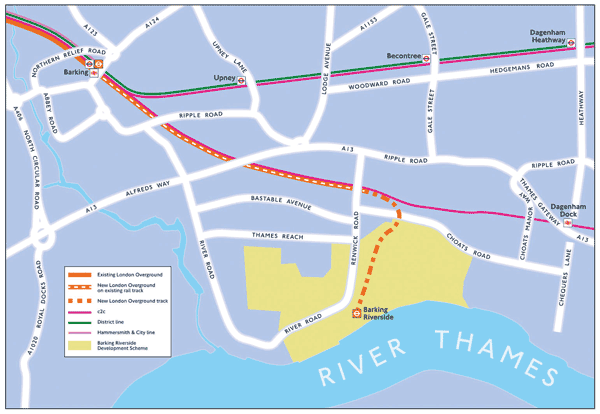

The extension will add 4.5km to the London Overground network, extending the Gospel Oak line from Barking to a new elevated Barking Riverside terminus, which will be situated in the main square of the development.

Better public transport links go hand-in-hand with the development’s sustainability goals. The new railway, along with planned river transport, will mean there will be less reliance on resident’s having to drive. Other green credentials at Barking Riverside include over 41% of the site being dedicated to open space, including a new ecology park with all green areas linked by parkland, cycle routes and footpaths.

A key element of the extension is a 1.5km-long viaduct that carries the final part of the new twin-railway line over a number of infrastructure assets, such as the existing London to Tilbury rail lines, a DB Cargo freight yard, High Speed One tunnels, roads and a waterway.

Being able to span these obstacles is the main reason why this part of the new branch line has been built on a viaduct, although a high-water table is also a major factor. Meanwhile, the elevated railway and its terminus will create a focal point in the heart of the new town square as well as providing commercial and retail opportunities in the bays under the raised station.

Overall, the viaduct can be divided into two parts; a concrete structure with precast beams and piers supporting a cast in-situ deck; and a steel viaduct also supported on concrete piers.
The former creates the longest part of the viaduct and ends at the Barking Riverside terminus, while the latter is approximately 400m-long and consists of nine spans at the northern end.

Explaining the reason for choosing two different construction designs, Transport for London’s (TfL) Head of Programme James Barrow says: “Steelwork was chosen for the northern end of the viaduct as it was the only material that could efficiently create the longer spans, up to 42m-long, needed to pass over rail, road and river obstacles.”

Some piers within the cargo depot have openings to allow for easier vehicle movements.

As well as creating the required long spans, the use of steel has allowed the project team to minimise disruption to these infrastructure assets. Less time and equipment was needed to erect the steel part of the viaduct, as prefabricated girders were brought to site, ready to be erected during a series of weekend possessions.

All of the sections used are fabricated from weathering steel, which was specified because the material is durable and requires no future maintenance or painting. This is an important consideration, as any work carried out on the viaduct in the future could cause major disruption to the operational railway assets below.

Working on behalf of TfL, construction of the viaduct was begun by Morgan Sindall/VolkerFitzpatrick joint venture (MSVF) in 2019.

As well as the interfaces with existing transport infrastructure, the site is also home to a myriad of underground services, all of which had to be located and then worked around when MSVF started the piling programme.

The new Barking Riverside station will be a central element of the new housing-led Thames-side development.

Once the viaduct’s piers had been constructed, the installation of the viaduct’s deck was begun. For the steelwork element of the viaduct, this work started with the most northerly steel girders for span five. Beyond this, spans one to four form the ramp of the viaduct, that bring the structure up to its regular 12m height.

Span five goes over a DB Cargo siding, that forms part of its Ripple Lane depot. Requiring weekend possessions and close coordination with the rail freight provider, steelwork contractor Severfield and its lifting partner, Sarens, installed the span’s two main plate girders, each weighing more than 100t and measuring 35m-long × 3m-deep.

Each of the viaduct’s steel spans has up to 22 cross beam members, which are all 12m-long (corresponding with the width of the viaduct). Four cross beams were also installed during the span five weekend possession, with the remainder lifted into place during the following week. This initial steelwork, and most of the subsequent lifts, were done using a Sarens 1,000t-capacity mobile crane.

The next four spans also go over the Ripple Lane depot and include one span supported by smaller, slender columns designed to allow easier vehicle movements around Ripple Lane.

The longest span, at 42m long, was installed during a night time rail possession.

“The viaduct piers are mostly large solid structures, and would be intrusive within the depot and impede vehicle movements,” explains Mr Barrows. “For one span, we have installed two slender columns instead of a pier as they allow vehicles to easily pass, while the adjacent pier has been designed with a large opening in the middle for vehicular access.”

One of the final steel spans to be installed was also the longest and, because of site constraints, required the use of one of the UK’s biggest mobile cranes, with a lifting capacity of 1,200t.

Two steel girders, measuring 42m-long × 3m-deep and each weighing 120t, represented some of the largest sections ever fabricated by Severfield at its Lostock facility near Bolton.

Moving these large steel sections around the yard and onto delivery trucks was a significant challenge as Severfield Assistant Project Manager Gethin Williams explains: “Our overhead cranes at Lostock have a lifting capacity of 100t, which is not enough to lift these items.

The main viaduct girders are up to 3m deep.

“The solution was to fabricate each girder on temporary trestles. Once the sections were ready to leave the factory, self-propelled modular transporters (SPMTs), each with a maximum lifting capacity of 140t, were reversed under the temporary trestles and jacked up towards the steel beams to allow for safe loading on to delivery trucks.”

Transporting the girders to east London was also challenging. Severfield had to liaise with local councils and police to temporarily remove traffic lights and other street furniture that would otherwise obstruct their movement – both near the factory and in Barking.

Once delivered to site, the girders were installed using a Sarens Gottwald 1,200t-capacity mobile crane lifting the 120t girders at a 65m radius, with a 71m main boom, and requiring 350t of lift ballast.

The installation of this vital span, which crosses the Ship and Shovel waterway, allowed the team to lift the next and final steel girders into place last April, allowing the follow-on trades installing the deck and tracks to begin their work.

Barking Riverside train services are scheduled to start during Autumn 2022.
