Composite beams
41843_SSDA entry ad_AW 20/6/07 12:43 pm Page 1
41843_SSDA entry ad_AW 20/6/07 12:43 pm Page 1
References
1 BS EN 1994-1-2:2005+A1:2014
Eurocode 4 - Design of composite steel and concrete structures - Part
1-2: General rules - Structural fire design
BSI, 2005
2 BS 5950-8:2003
Structural use of steelwork in building - Part 8: Code of practice for fire
resistant design
exce ence
in
steel
BSI, 2003
3 PN005c-GB
NCCI: Fire resistance design of composite slabs
The Steel Construction Institute
41843_SSDA entry ad_AW 20/6/07 12:43 pm Page 1
24 NSC
exce ence
in
steel
exce ence
in
steel
Technical Digest 2018
4 NA to BS EN 1994-1-2:2005
UK National Annex to Eurocode 4: Design of composite steel and
concrete structures - Part 1-2: General rules - Structural fire design
BSI, 2008;
5 Steel and composite structures: behaviour and design for fire safety
Y. C. Wang, Spoon Press, 2005
6 AS/NZ 2327.1
Composite Structures – Composite steel-concrete construction in
buildings
Standards Australia/Standards New Zealand, 2017
Mpl,rd,fire
kNm
Slab temperature profile case
η 1 2 3 4 5 6 7 8
0.00 37.71 37.71 37.71 37.71 37.71 37.71 37.71 37.71
0.25 60.22 60.22 60.22 60.22 60.22 60.22 60.22 60.22
0.50 76.24 76.24 76.24 76.24 76.24 76.24 76.24 76.24
0.75 91.41 91.41 91.41 91.41 91.35 91.30 91.36 91.34
1.00 105.37 105.25 105.25 105.08 105.00 104.95 105.01 104.99
Mpl,rd,fire
kNm
Slab temperature profile case
η 1 2 3 4 5 6 7 8
0.00 199.13 199.13 199.13 199.13 199.13 199.13 199.13 199.13
0.25 284.60 284.60 284.60 284.60 284.60 284.60 284.60 284.60
0.50 335.08 335.08 335.08 335.08 335.08 335.08 335.08 335.08
0.75 375.67 375.44 375.44 375.10 374.93 374.82 374.95 374.92
1.00 413.06 412.83 412.83 412.49 412.33 412.22 412.34 412.31
Table 4 – Results for 6 m span beam: UB 203 x 133 x 25; Steel critical temperature: 621°C. Table 5 – Results for 12 m span beam: UB 406 x 178 x 67; Steel critical temperature: 620°C

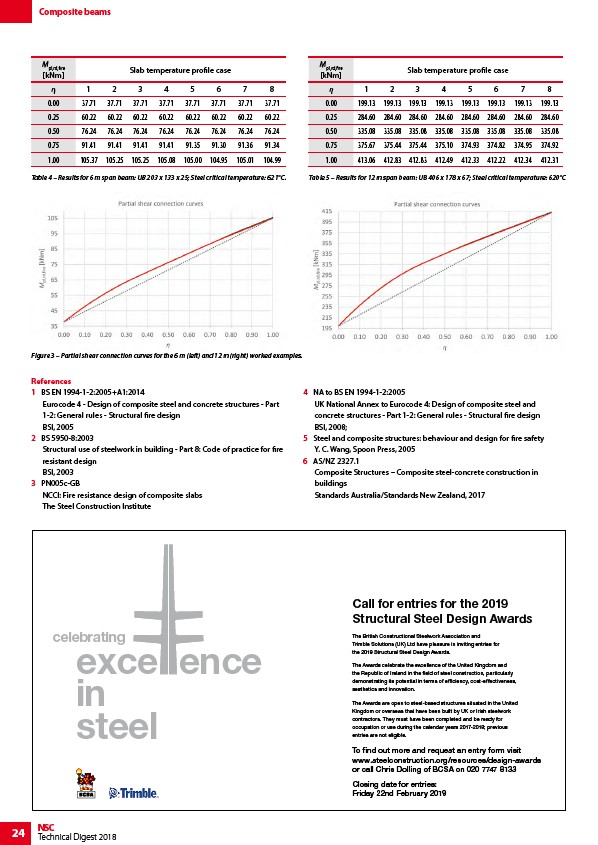

Figure 3 – Partial shear connection curves for the 6 m (left) and 12 m (right) worked examples.
